Stator Stack Gauging
Accurate high volume in-line dimensional inspection of stator stacks matching stamping press speeds
Stator & Rotor Stacks
ZeroTouch delivers comprehensive stator inspection in line with stamping press operations. Real-time process feedback eliminates bottlenecks caused by offline CMMs and Inspection labs. Automated systems replace custom gauges and save factory floorspace while offering the flexibility to measure multiple part types on one machine.

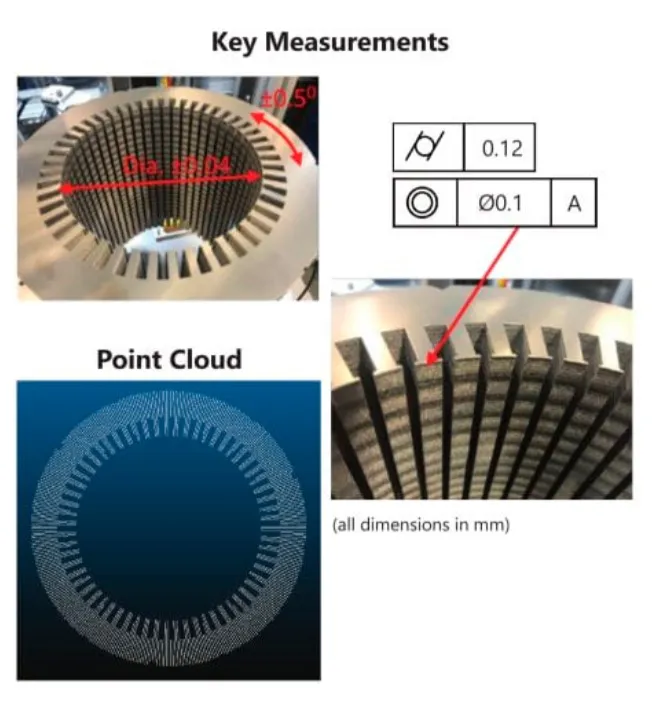

Typically Measured Features

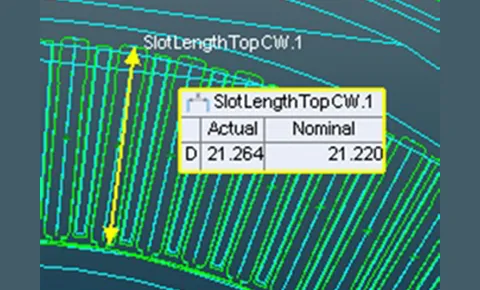

- Linear dimensions
- Diameters
- Perpendicularity
- Flatness
- Runout
- Coaxiality
- Concentricity
- Cylindricity
- Angles

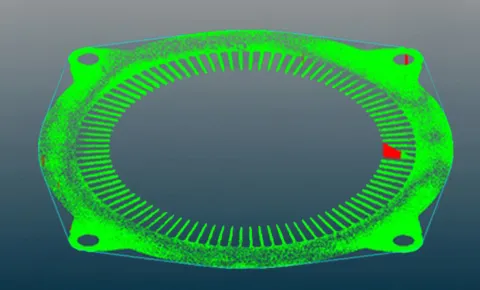

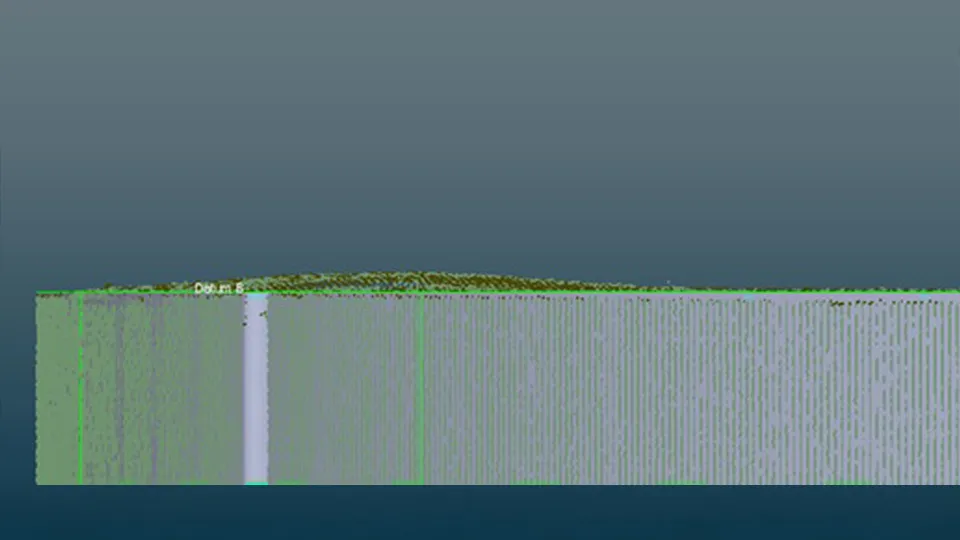

- Defect detection of dents and delaminated stacks
Benefits
- Dimensional reports
- Visual representation of physical part deviation
- Fast cycle times
- Reduced floor space
- Automation ready
- Real-time process feedback
- Full Industry 4.0 integration for results and process trends
- PLC
- MES
- Web reporting
Stator Stacks
ZeroTouch Benefits

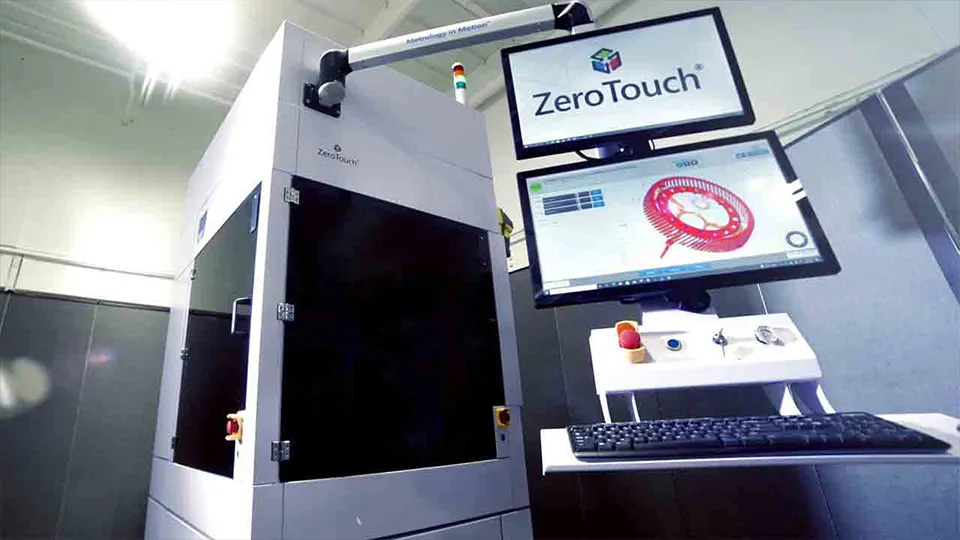

In-line Inspection, Automation Ready
Replace the need for multiple, slow coordinate measurement machines with in-line inspection with the ability to automate loading and completely couple to the manufacturing process. Universal nest design concept allows for different part variations to be inspected on the same assembly line.

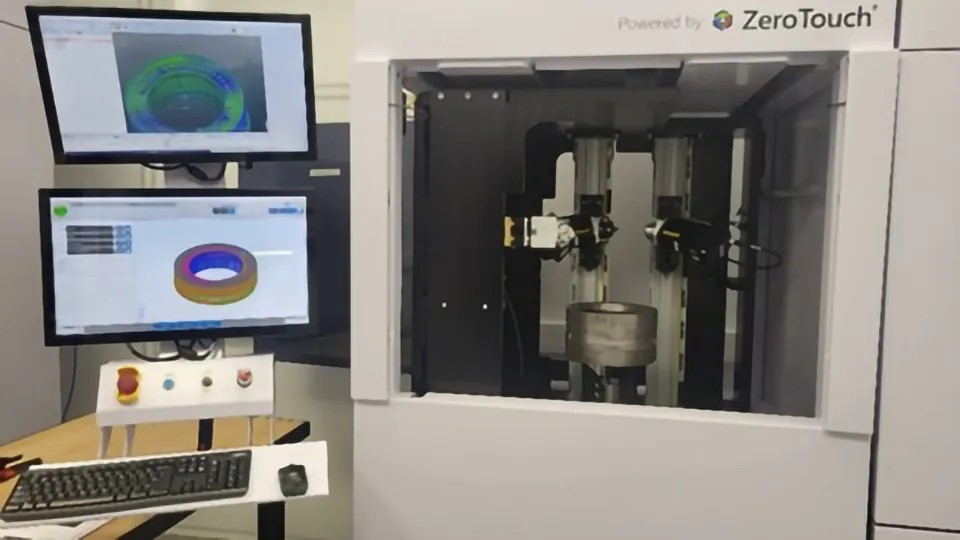

Non-Contact Inspection at the Speed of Light
The ZeroTouch® delivers fast inspection cycles with comprehensive part evaluation. Laser capture required features and definitive pass fail and be confirmed in cycle with results communicated to PLC or MES systems.
Comprehensive Part Analysis and Process Monitoring

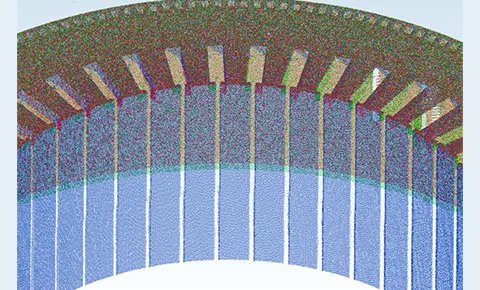

Utilize the digital twin point cloud captured to perform what-if analysis of features not previously analyzed to support engineering investigations and quality improvement projects.
